升威生產不銹鋼大口徑流體管道焊管機設備

大口徑焊管機-Large Diameter Pipe Machine


圓形/方形/矩形等不銹鋼/銅/碳鋼/鐵/鍍鋅等大口徑金屬管焊管機械設備

生產線

Round/Square/Rectangle Etc Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc Large Diameter

Metal Pipe Making Machine Welding Tube Mill

大口徑金屬管焊管機是以生產大中型口徑和相對較厚的管材為主的設備。可以用于生產石化、高壓力、高流量等要求高的管材。此外，通過制管機配合模具設計加以焊接，可以直接輕松擠壓出不同的形狀成管材，如圓形，方形，矩形等形狀，適用于不銹鋼、鐵、碳鋼等金屬材質的管材制造。

管材材質：不銹鋼/鐵/碳鋼/鈦鋼等。

管形：圓/方等

應用領域：建材/工程管/水管/流體管/鈦管/石化管/航天汽車管/飲用食品級管/衛(wèi)生級管等領域

Large diameter metal pipe welding making machine tube mill is a professional equipment which mainly produces large and medium-sized pipes and relatively thick pipes. It can be used in the production of petrochemical, high pressure, high flow and other high demand pipes. In addition, by welding the tube making machine with the die design, different shapes of tubes can be extruded directly and easily, such as round, square, rectangular and other shapes, which are suitable for the manufacture of stainless steel, iron, carbon steel and other metal materials.

TUBE MATERIAL:Stainless steel / iron / carbon steel / titanium steel, etc.

PIPE SHAPE:Round Square Etc

USDAGE:Building materials / Engineering pipeline/Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc

生產工藝/Production Process

開卷—LOGO/矯平—成型—焊接—打磨—定徑—調直—切割—落料

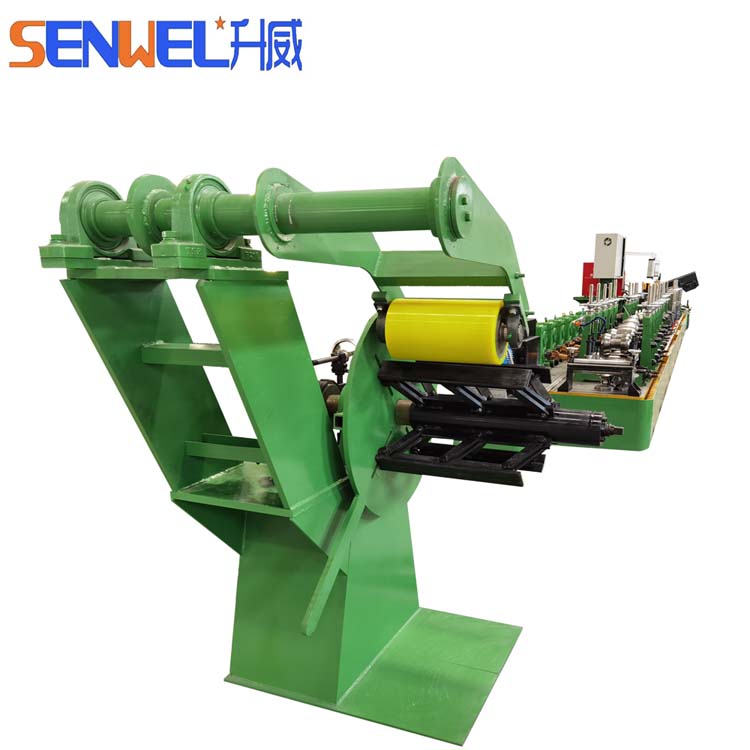

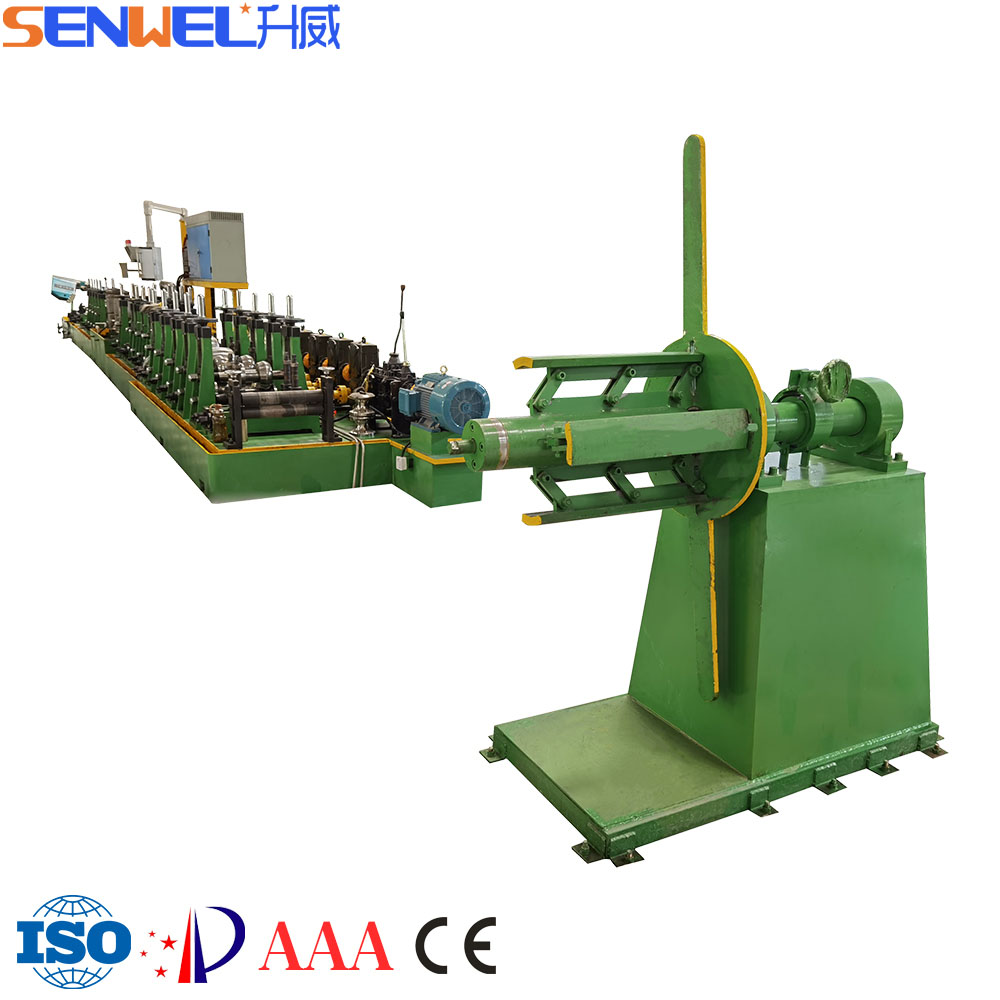

1:Decoiler 2:Flattening 3:Forming 4:Welding 5:Polishing 6:Sizing 7:Straightening 8:Cutting 9：Unloading

型號參數/Model & Parameter

型號

Model

GXG-50

GXG-60

GXG-70

GXG-80

GXG-90

GXG-100

圓管管徑范圍Circular tube range(mm)

?31.8—76.2

1-1/4”—3”

?50.8—114.0

2”—4-1/2”

?76.2—168

3”—6-5/8

?114.0—219.0

4-1/2”—8-1/2”

?158.0—273.0

6-1/5”—10-3/4”

?219.0—325.0

8-1/2”—12-4/5”

壁厚范圍

Wall thickness range(mm)

0.5—3.0

1.0—4.0

1.0—5.0

1.5—6.5

3.0—10.0

3.0—12.0

細節(jié)展示/Detail

制造工藝/manufacturing process Display

圖紙設計—坯件鑄造—粗加工—CNC精加工—箱體加工—龍門銑床加工—部件組裝—機臺組裝—機組調試—包裝—裝車—安裝調試培訓

Design——Blank casting——Rough machining——CNC finish machining——Box processing——CNC Planer Mille processing——Parts assembly——Machine assembly——Debugging & testing——Packing——transport—— Installation and commissioning training

質量=設計+技術+經驗+材料+設備

Quality = Design + Technology + Experience + Materials + Equipment
